WLS-188 Auto Patch Pocket Setter (Pocket Attaching) Sewing Machine (Pattern Programmable)

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
NINGBO PORT or SHANGHAI PORT
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WEILISHI
Model Number:
WLS-188
Stitch Formation:
Chain Stitch
Mechanical Configuration:
Flat-Bed
Max. Sewing Speed:
3500rpm
Max. Sewing Thickness:
28mm
Stitch Length:
0.05-12.7mm
Power:
550W
Overall Dimensions:
170*150*120cm
Feed Mechanism:
Multiple
Certification:
ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
patch pocket machine:
patch pocket machine
XY motor:
servo motor
sewing area:
700*250mm
table board:
304 stainless steel
hook:
ZUOWEN or GUANGLAI
type:
aotumatic no-iron patch pocket machine
speed:
one hour can make 240 pocket
advantage:
one machine can replace 3-10 workers
use:
make pockets
patch pocket sewing machine:
patch pocket sewing machine
Packaging & Delivery
Packaging Details
PLYWOOD CASE
Delivery Time
7 to 15 days after received deposit
Product Description

Product Application

My company production of WEILISHI series CNC multi function patch pocket machine, for today's recruitment difficulties, high labour costs and sewing process complex individual requirements, break through the traditional concept of the study, the most advanced computer control technology into the sewing machine, adopting the optimization design, make traditional sewing process has been a subversive update, production efficiency is greatly improved.


Wide application, can be widely used in shirt, jeans, T shirts, shorts, coats, casual pants, suits, cases, and so on.

SPECIFICATIONS FOR PATCH POCKET MACHINE

Engine
X Motor
SERVO MOTOR
Y Motor
SERVO MOTOR
Power
0.25-0.4Mpa

Main performance parameters
Sewing Speed
3500rpm
max speed
one hour can make 240 pockets
needle
DP*5  7#-25#


Sewing area
700*250mm
Hook
ZUOWEN or GUANGLAI
table board
304 stainless steel

Main Features

1) One button operation, workers to operate as long as click on the start button, the machine will automatically run.


2) automatic folding no-iron patch pocket machine


3)every hour can delicate sewing 240 pockets


4) Running in a high automatization and intellectualization,no pollution


5) can choose automatic folding feeding work mode


6)have semi-automatic prepare folding edge feeding work mode


7)applicable to the following material's pocket sewing: the net color denim fabric, shirt and other garments. Also widely used in luggage bag's pocket sewing.

Working Room
Detailed Images

Patch Pocket Machine Parts

Name: Automatic Identification System



①simple and accurate, greatly improve efficiency.

when it no pocket on the tongue, the machine will stop work.

②the whole machine using servo motor control system, repeat positioning accuracy can reach to 0.001mm

Patch Pocket Machine Parts

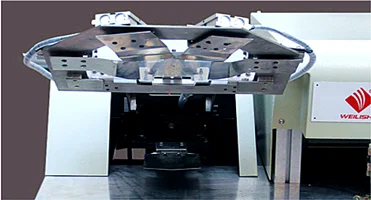

Name: Automatic tightening system

①Automatic folding no-iron patch pocket machine;


②Machine use of scanner identification, simple and accurate, greatly improve efficiency;


③original machine head can be replaced, can sewing thick material and thin material;

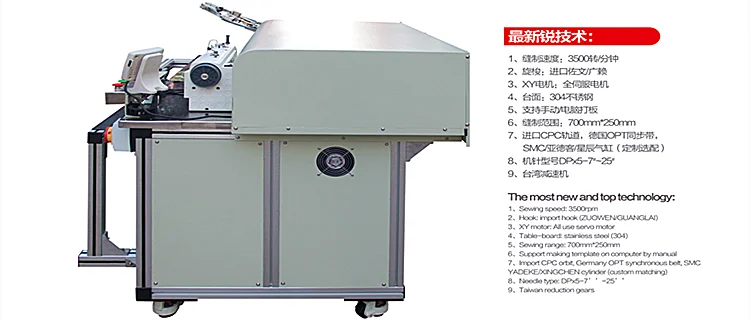

Patch Pocket Machine specification

Name: Automatic disconnection system

① sewing speed: 3500rpm
② Hook: import hook (ZUOWEN/GUANGLAI)
③ XY motor: all use servo motor
④ table-board: stainless steel (304)
⑤ sewing range: 700mm*250mm
⑥ support making template on computer by manual
⑦ import CPC orbit, Germany OPT synchronous belt, SMC/YADEKE/XINGCHEN cylinder (custom matching)
⑧ needle type: DP*5-7#-25#
⑨ Taiwan reduction gears

Patch Pocket Machine Parts

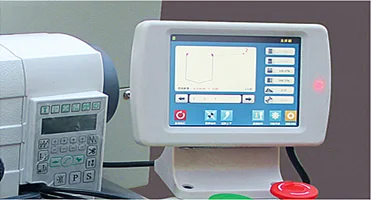

Name: center control systerm
①the whole machine adopts CNC processing center design principle;

②computer control system adopts ARM processor, it can realize the safe operation of the dual mode model;

③the whole movement parts using the flexible judgment, can avoid wrong operation lead to bad product produce;

④every hour can delicate sewing 240 pockets

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
Weight



Packaging Details
The normal package is:

Inner Packing: use pe film for packing or pack it according to customers special request.

Outside Packing: PLYWOOD CASE
Delivery
Port
FOB NINGBO or SHANGHAI




delivery time

According to your quantity;

normally: 7-30 days
